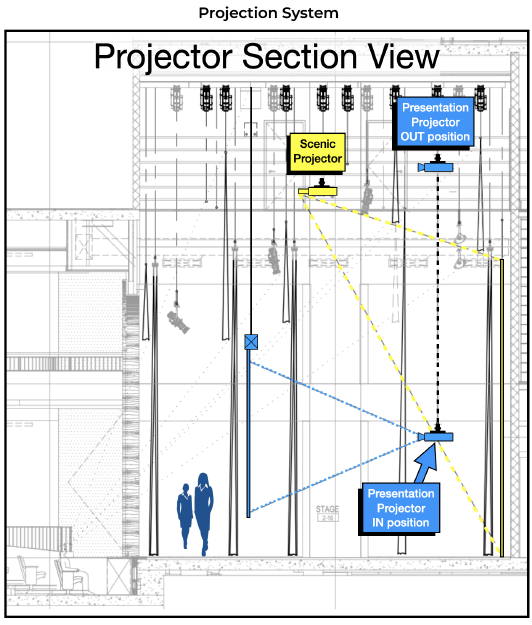

The presentation projector is run on a Q-SYS Eco System touch screen stage left connecting both video & audio to our projector & sound system. There are multiple areas around the stage and theater to connect to via HDMI cable and/or adapters. This projector flies and has both an IN & OUT position to accommodate the Scenic projectors shot when not in use.
-
The Scenic projector is also run on a Q-SYS Eco System touch screen stage left connecting both video & audio to our projector & sound system. There are multiple areas around the stage and theater to connect to via HDMI cable and/or adapters.
Control & Dimmer Capacity
| Quantity | Item / Description |
|---|---|
| 1 | ETC Ion-XE, 20 version 3.2.12 w/ Monitor, Mouse & Keyboard |
| 1 | ETC EOS Remote Interface w/ Monitor |
| 144 | ETC 2.4K Dimmers |
| All House & Work lights on dedicated solid state dimmers | |

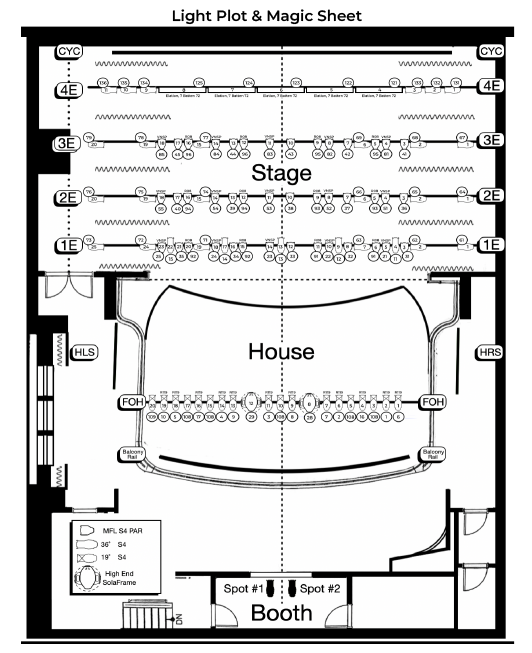

Inventory
| Quantity | Item / Description |
|---|---|
| 24 | 36° ETC Source Four |
| 18 | 19° ETC Source Four |
| 12 | Altman Spectra Cyc 100 |
| 36 | MFL PAR ETC Source Four |
| 2 | High End SolaFrame Theater |
| 17 | Luster LED Series 2, ETC Source Four |
| 20 | ColorSource PAR - ETC ColorSource PAR |
| 10 | Elation Seven Batten 72 LED Strip Lite |
| 2 | Follow Spots - Megalite Drama FS LED 900 |
Cable
| Quantity | Item / Description |
|---|---|
| Note: The majority of cable is IN USE currently for the light plot | |
| 20 | 5’ 3-Pin, 20 amp |
| 5 | 5’ Edison |
| 20 | 10’ 3-Pin, 20 amp |
| 5 | 10’ Edison |
| 20 | 25’ 3-Pin, 20 amp |
| 24 | 5’ PowerCon |
| 2 | 50’ 3-Pin, 20 amp |
| 24 | 10’ PowerCon |
| 20 | Twofers 3-Pin, 20 amp |
| 10 | 5’ DMX |
| 10 | 10’ DMX |
| 5 | 25’ DMX |
